SupraValve® Check Valve Assembly
Product Number: V130022100
The Supravalve Check Valve Assembly is designed for medical check valve applications and includes an elastomeric duckbill made from Vernay’s proprietary silicone compound, specifically formulated to meet USP Class VI standards. It also features Vernay’s patented lubrication treatment, ensuring consistent and reliable valve performance.
Materials of Construction
- Part Number: V130022100
- Product Group: Duckbill
- Material Number: VL1001M11
- Material Type: Silicone
- Material Color: White
- Housing Material: Clear Polyacrylate
Valve Specifications
- Product Number: V130022100
- Product Group: Duckbill
- Material Number: VL1001M11
- Material Type: Silicone
- Material Color: White
BioCompatibility
- USP Class VI: Passed, for both valve and housing.
- 21 CFR 177.2600: The ingredients in this compound have been selected to comply with this FDA regulation. The finished articles have not been tested.
- Cytotoxicity: Passed
- Latex & DEHP Free: Yes
Sterilization Compatibility
- Gamma Irradiation: Yes
- EtO Sterilization: Yes
- Steam Autoclave: Assembly may be steam autoclaved, but is not suitable for repeated high temperature sterilization associated with re-usable devices.
Design Characteristics
Fitments
- Inlet Fitment: Slip Tube
- Inlet Tube Fit: 3.3 mm (.130 inch)
- Outlet Fitment: Slip Tube
- Outlet Tube Fit: 3.3 mm (.130 inch)
Additional Characteristics
- I.D. Tubing Compatible: 3.2 mm (1/8 inch)
- Position Sensitivity: None
Photo/Rendering

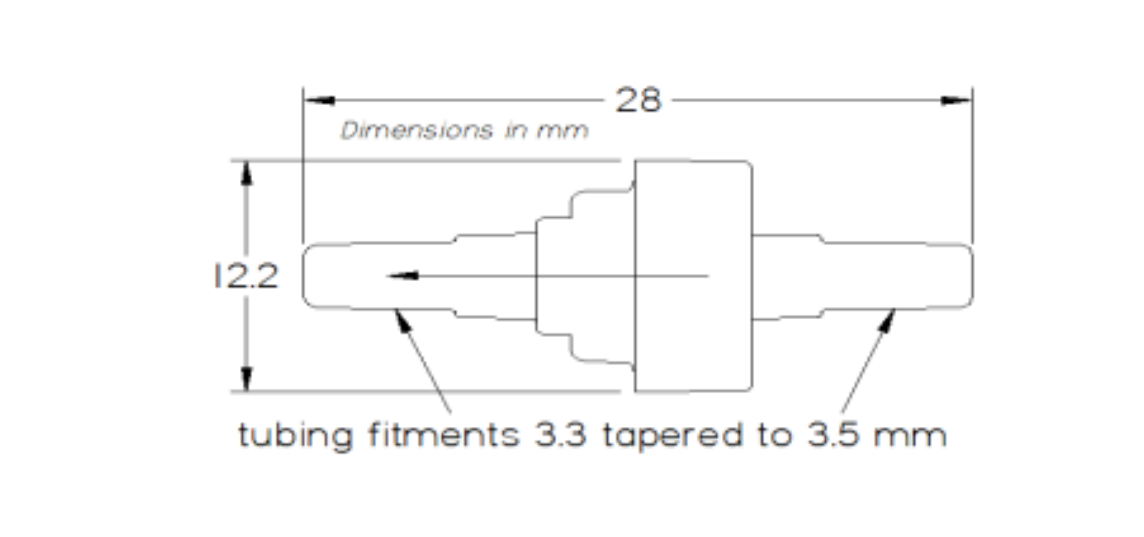

Technical Drawing
Performance Characteristics
Reverse Leakage
Definition
All Check Valve Assemblies undergo air testing during assembly to ensure backflow resistance at 20 mbar (8" H₂O). The maximum acceptable backflow is 3 ml/min.
Forward Flow
Definition
All Check Valve Assemblies undergo air testing during assembly to ensure forward flow at 20 mbar (8" H₂O). The minimum acceptable flow rate is 1,350 cc/min.
